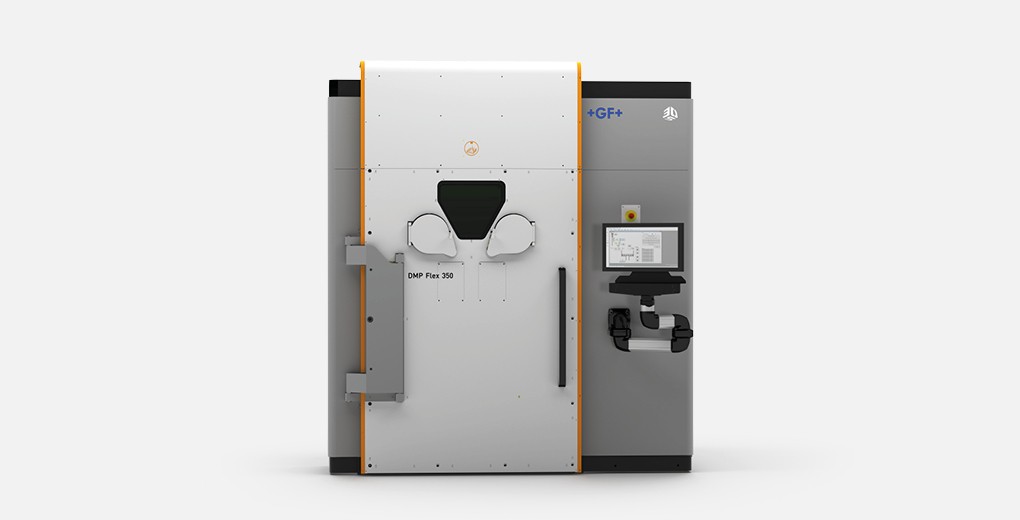

DMP Flex 350
The DMP Flex 350 enables more efficient production of very dense, pure metal parts and includes improved gas flow technology for improved uniform part quality across the entire build area. Flexible, high throughput, high repeatability metal 3D printer that generates high quality precision parts with maximum part size 275 x 275 x 380 mm from the most challenging alloys. Upgradable to DMP Factory 350 solution.
High repeatability for high quality parts
High throughput metal 3D printing
Low TCO for affordable per part costs
Robust, Flexible Metal 3D Printer for 24/7 Part Production
Specifications
Main Specifications
Machine dimensions *
2370 x 2820 x 2670
Machine weight
3940 kg
Working Area
Number of laser
1
Laser power type (Fiber laser)
500 W
Max. build envelope capacity* (W x D x H)
275 x 275 x 380 * mm
Max. feature size
100µm
Minimum wall thickness
150µm
Typical accuracy
± 50 minimum (± 0.1-0.2%) µm
Layer thickness
10 - 100 (Preset: 30 and 60) µm
Repeatability X, Y, Z
20 x 20 x 20 µm
Numerical Control
Software tool
3DXpert all-in-one software for Metal AM
Control software
DMP software suite
